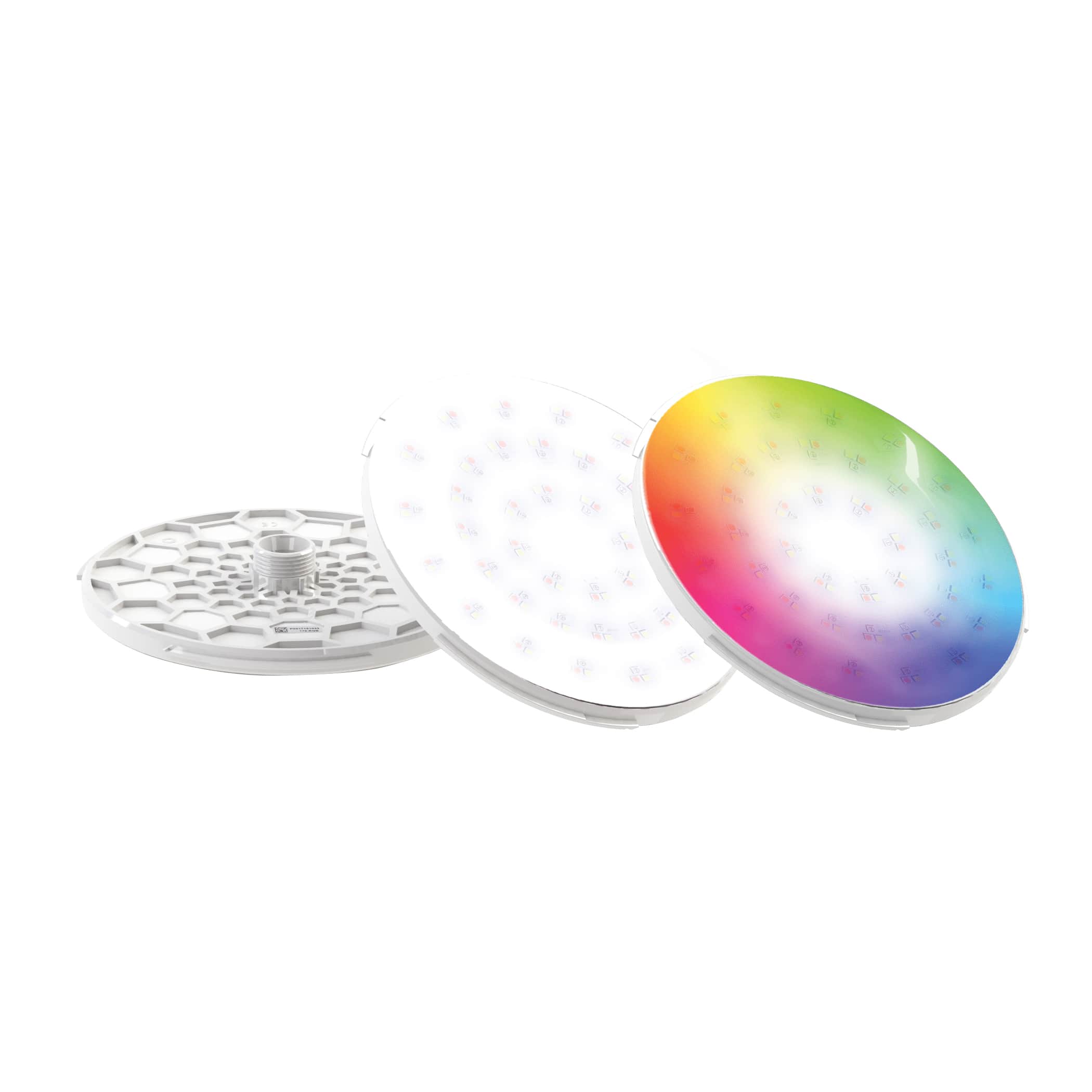

LED underwater pool light VISION Spectra
- 5/10/17 cm
diameter
- Salt electrolysis
suitable
- RGB
11 color programs
- Tunable white
6 fixed white tones incl. blue
Description
The intelligent VISION lighting solutions can be used in any type of swimming pool. They are suitable for both new installation and retrofitting and can be installed in most standard 1 ½" wall conduits.
A resin-filled NoAir™ housing prevents water from entering the pool light. The high-quality housing is made of corrosion-resistant polymer and can be used in pools with salt electrolysis systems.
The spotlight has a very wide beam angle, which means that shadow zones in the pool can be avoided.
Available in the versions "RGB", "white" and "tunable white" (TW).
Can be controlled via simple transformer or with remote control.
Product details
Technical data
Swipe/scroll to see all columns
| |
Spectra 5 |
Spectra 10 |
Spectra 17 |
|---|
| |
RGB |
TW |
RGB |
TW |
RGB |
RGB |
W |
TW |
|---|
| Color | RGB | tunable white | RGB | tunable white | RGB | RGB | white | tunable white |
| Nominal color temp. (K) | - | 3000 - 6500 + blue | - | 3000 - 6500 + blue | - | - | 5000 | 3000 - 6500 + blue |
| Power (W) | 8 | 8 | 20 | 20 | 20 | 32 | 17 | 32 |
| Lumens (lm) | 450 | 550 | 1550 | 1500 | 1600 | 2450 | 1675 | 2400 |
| Diameter (mm) | 50 | 50 | 100 | 100 | 170 | 170 | 170 | 170 |
| Voltage (V AC) | 10 - 14 | 10 - 14 | 10 - 14 | 10 - 14 | 10 - 14 | 10 - 14 | 10 - 14 | 10 - 14 |
| Max. water temp. (°C) | +40 | +40 | +40 | +40 | +40 | +40 | +40 | +40 |
| Protection class | IP68 | IP68 | IP68 | IP68 | IP68 | IP68 | IP68 | IP68 |
| Art.-Nr. |
7300785 |
7300786 |
7300787 |
7300788 |
7300789 |
7300790 |
7300791 |
7300792 |
Features
- NoAir™ housing
- Salt electrolysis compatible
- RGB: 11 color programs
- TW: 6 fixed white tones including blue
- Very wide beam angle
- Ultra-flat installation
- Suitable for 1 ½" wall conduits
- Large range of covers
- 2-wire cabling: power supply and control via a single cable
- Easy installation thanks to QuickConnect™, PressFit™ and ClickOn™ functions
- Simple control
Color programs
| |
RGBW lamps |
|
| 1 | Candle Light | 2000K very warm white |
| 2 | Warm White | 3000K warm white |
| 3 | Neutral White | 5000K neutral white |
| 4 | Cold White | 9500K cold white |
| 5 | Caribean Blue | Cyan |
| 6 | Blue | Blue |
| 7 | Green | Green |
| 8 | Red | Red |
| 9 | Purple | Purple |
| 10 | Yellow Dynamic | Slow animation yellow |
| 11 | Blue Dynamic | Fast animation blue |
| |
TW lamps |
|
| 1 | Candle Light | 2000K |
| 2 | Warm White | 3000K |
| 3 | Neutral White | 5000K |
| 4 | Cold White | 9500K |
| 5 | Blue-White | 13500K |
| 6 | Cool Blue | 17500K |
Versions
| Product |
Art. Nr. |
|---|
| LED underwater pool light VISION Spectra 5 RGB, 450 lm, 8 W, d 50 mm | 7300785 |
| LED underwater pool light VISION Spectra 5 tunable white, 550 lm, 8 W, d 50 mm | 7300786 |
| LED underwater pool light VISION Spectra 10 RGB, 1550 lm, 20 W, d 100 mm | 7300787 |
| LED underwater pool light VISION Spectra 10 tunable white, 1500 lm, 20 W, d 100 mm | 7300788 |
| LED underwater pool light VISION Spectra 17 RGB, 1600 lm, 20 W, d 170 mm | 7300789 |
| LED underwater pool light VISION Spectra 17 RGB, 2450 lm, 32 W, d 170 mm | 7300790 |
| LED underwater pool light VISION Spectra 17 white, 1675 lm, 17 W, d 170 mm | 7300791 |
| LED underwater pool light VISION Spectra 17 tunable white, 2400 lm, 40 W, d 170 mm | 7300792 |
Scope of delivery
- VISION Spectra pool light
- Detachable 2-core cable with DuraNet Communication Technology, length 2 m
- QuickConnect™ kit
- Retrofit kit for PAR56 niche (VISION Spectra 17 only)
Suitable control units
Our recommendation
Control unit with transformer
For OFF/ON and color setting functions. Built-in 200 VA transformer. Includes 1 hand-held transmitter.
More infos
Control unit without transformer
For OFF/ON and color setting functions. Includes 1 hand-held transmitter.
More infos
Alternate control options
Transformer TORO DIN 150 W
Toroidal transformer. Model for DIN rail mounting.
More infos
Transformer TORO IP64 150 W
Toroidal transformer. Model for wall mounting with IP64 housing.
More infos
Innovative technology for easy installation
NoAir™
Resin-filled, air-free lamp housing. This unique production process guarantees leak-free and condensation-free swimming pool lighting. At the same time, internal light reflection is eliminated, resulting in more light output.
QuickConnect™
Unique plug-in system between cable and lamp. Ensures simple and reliable installation, regardless of the diameter of the headlamp. The power cables can be laid and fastened without stripping.
Ultra Flat
Thanks to its very flat shape, the spotlight blends seamlessly into the pool and does not interfere with pool cleaning robots.
PressFit™
An adjustable light mounting system that allows pool lights to be mounted seamlessly on the wall, even if the wall cables are not mounted 100% vertically. Simply push the spotlight with plug into the wall conduit. Tolerances are compensated for so that a seamless connection to the pool wall is always achieved.
ClickOn™
An innovative concept for the effortless replacement of covers on pool lights. Spotlights and covers can simply be clicked together. The large selection of covers makes it possible to customize the pool.
