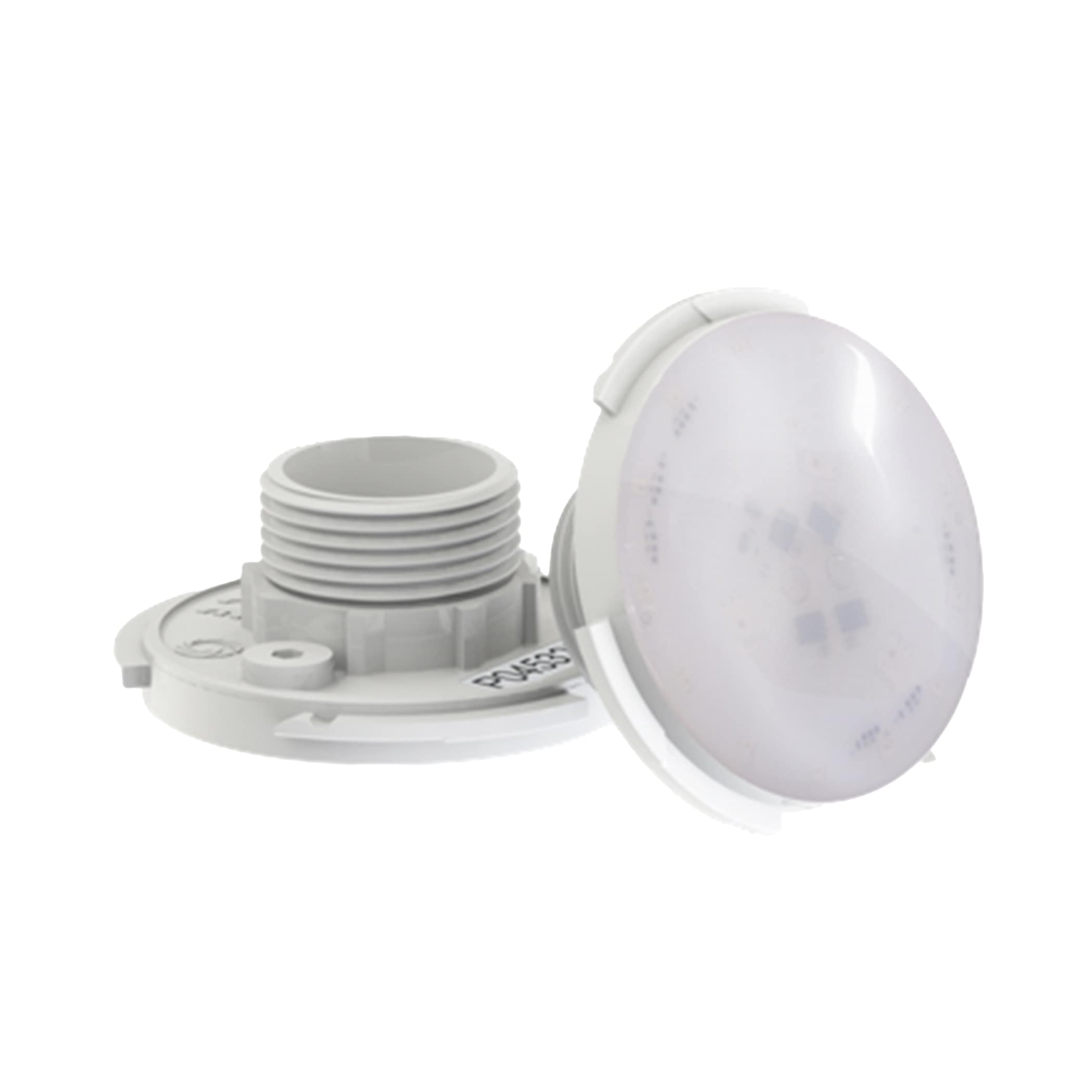

LED underwater pool light VISION Adagio Pro 5 white
- 5 cm
diameter - DMX interface
for Smart Home integration - Salt electrolysis
suitable
Description
The intelligent VISION lighting solutions can be used in any type of swimming pool. They are suitable for both new installation and retrofitting and can be installed in most standard 1 ½" wall conduits.
A resin-filled NoAir™ housing prevents water from entering the pool light. The high-quality housing is made of corrosion-resistant polymer and can be used in pools with salt electrolysis systems. The pool lighting can be easily integrated into smart home systems via a DMX interface.
The spotlight has a very wide beam angle, which means that shadow zones in the pool can be avoided.
Available in "warm white" and "white".
Product details
Technical data
| Pro 5 White | |||
|---|---|---|---|
| Color | warm white | ||
| Nominal color temp. (K) | 7700 | ||
| Power (W) | 8 | ||
| Lumens (lm) | 750 | ||
| Diameter (mm) | 50 | ||
| Voltage (V AC) | 10 - 14 | ||
| Max. water temp. (°C) | +40 | ||
| Protection class | IP68 | ||
Features
- NoAir™ housing
- Salt electrolysis compatible
- Very wide beam angle
- Ultra-flat installation
- 2-wire cabling: power supply and control via a single cable
- Simple smart home integration via DMX interface
- Easy installation thanks to QuickConnect™, PressFit™ and ClickOn™ functions
- Suitable for 1 ½" wall conduits
- Large range of covers
Versions
| Product | Art. Nr. |
|---|---|
| LED underwater pool light VISION Adagio Pro 5 warm white, 700 lm, 8 W, d 50 mm | 75223 |
| LED underwater pool light VISION Adagio Pro 10 warm white, 2400 lm, 23 W, d 100 mm | 75221 |
| LED underwater pool light VISION Adagio Pro 17 warm white, 4950 lm, 55 W, d 170 mm | 75220 |
| LED underwater pool light VISION Adagio Pro 5 white, 750 lm, 8 W, d 50 mm | 75219 |
| LED underwater pool light VISION Adagio Pro 10 white, 2600 lm, 25 W, d 100 mm | 75218 |
| LED underwater pool light VISION Adagio Pro 17 white, 5500 lm, 57 W, d 170 mm | 75217 |
Scope of delivery
- VISION Adagio Pro 5 white pool light
- Detachable 2-core cable with DuraNet Communication Technology, length 4 m
- QuickConnect™ kit
Suitable control units
Control unit with transformer (350 VA)
Intelligent control for changing the color and dimming. Built-in 350 VA transformer. DMX512 and RS-485 connectivity.
More infos
Intelligent control for changing the color and dimming. Built-in 350 VA transformer. DMX512 and RS-485 connectivity.
More infos
Control unit without transformer
Intelligent control for changing the color and dimming. DMX512 and RS-485 connectivity.
More infos
Intelligent control for changing the color and dimming. DMX512 and RS-485 connectivity.
More infos
For easy operation
LINK Touch remote control RGB
Remote control with long range. Wall mounting possible. With rechargeable battery. Extension to the VISION control units.
More infos
Remote control with long range. Wall mounting possible. With rechargeable battery. Extension to the VISION control units.
More infos
Innovative technology for easy installation
NoAir™
Resin-filled, air-free lamp housing. This unique production process guarantees leak-free and condensation-free swimming pool lighting. At the same time, internal light reflection is eliminated, resulting in more light output.
Resin-filled, air-free lamp housing. This unique production process guarantees leak-free and condensation-free swimming pool lighting. At the same time, internal light reflection is eliminated, resulting in more light output.
QuickConnect™
Unique plug-in system between cable and lamp. Ensures simple and reliable installation, regardless of the diameter of the headlamp. The power cables can be laid and fastened without stripping.
Unique plug-in system between cable and lamp. Ensures simple and reliable installation, regardless of the diameter of the headlamp. The power cables can be laid and fastened without stripping.
Ultra Flat
Thanks to its very flat shape, the spotlight blends seamlessly into the pool and does not interfere with pool cleaning robots.
Thanks to its very flat shape, the spotlight blends seamlessly into the pool and does not interfere with pool cleaning robots.
PressFit™
An adjustable light mounting system that allows pool lights to be mounted seamlessly on the wall, even if the wall cables are not mounted 100% vertically. Simply push the spotlight with plug into the wall conduit. Tolerances are compensated for so that a seamless connection to the pool wall is always achieved.
An adjustable light mounting system that allows pool lights to be mounted seamlessly on the wall, even if the wall cables are not mounted 100% vertically. Simply push the spotlight with plug into the wall conduit. Tolerances are compensated for so that a seamless connection to the pool wall is always achieved.
ClickOn™
An innovative concept for the effortless replacement of covers on pool lights. Spotlights and covers can simply be clicked together. The large selection of covers makes it possible to customize the pool.
An innovative concept for the effortless replacement of covers on pool lights. Spotlights and covers can simply be clicked together. The large selection of covers makes it possible to customize the pool.
