iQmfort BASE - Pool automation, complete pool technology set

The iQmfort BASE is an easy-to-install complete pool technology set for skimmer pools.

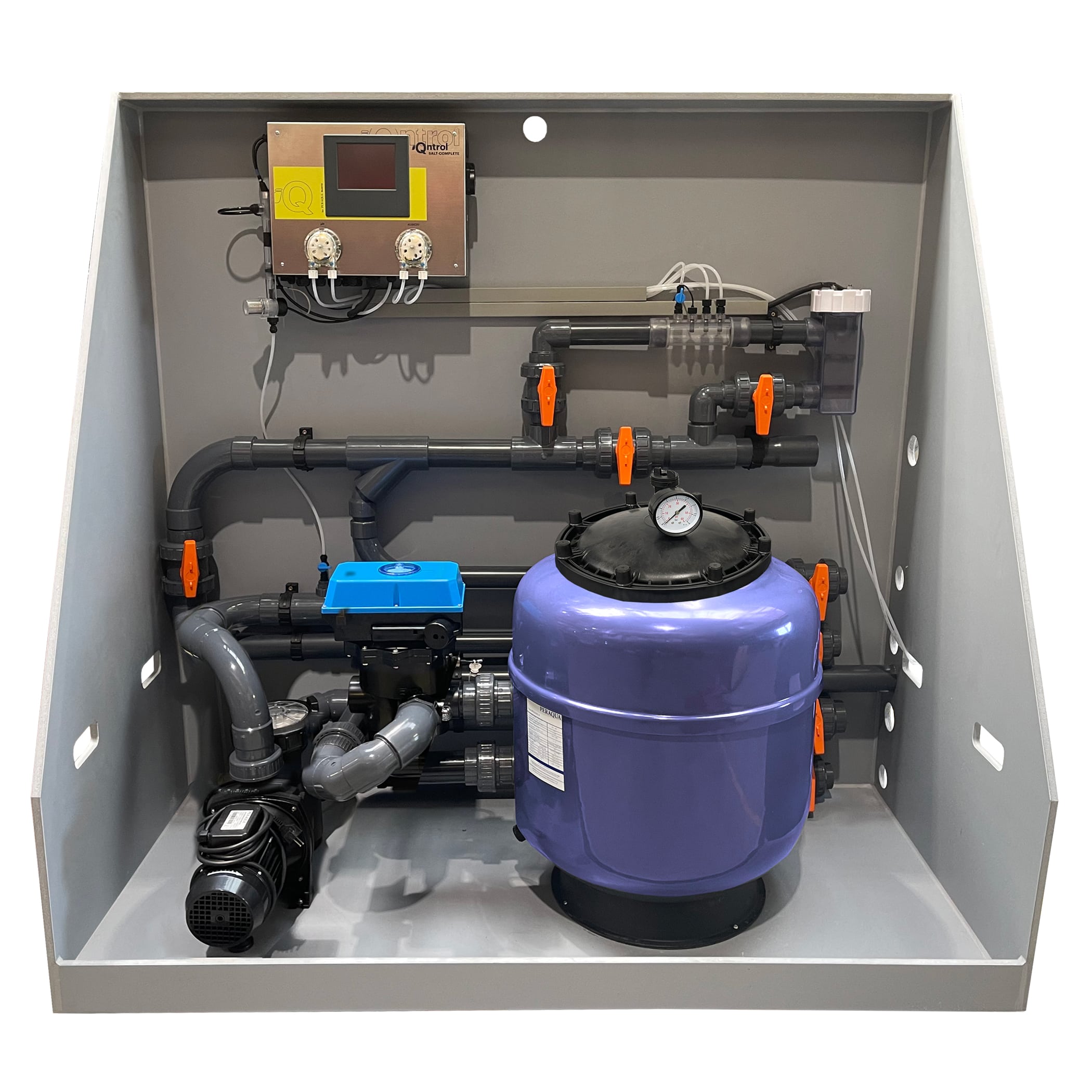

A filter, a filter pump, an Aquastar® backwash valve and an iQntrol salt or chlorine system are piped and pre-assembled on a BASE (electrics not included). The optional integration of a heat pump, level control and underwater spotlights has also been taken into account.

An iQmfort pool system is controlled either via an Aquastar® Control (7301556) or an Aquastar® Easy 2 backwash valve (7301557), which serves as an automatic backwash valve and pool controller. All important pool technology tasks (filtering, backwashing, heating, level regulation) can be monitored, controlled and automated via the Aquastar®.

Enjoy the unrivalled comfort of this first-class solution and experience how effortless pool maintenance can be!

Optionally with chlorine disinfection (7301556) or salt electrolysis system (7301557).

Product details

Components

• Polyester filter Linz, d610, including 2" Praher Plastics 6-way backwash valve
• Aquastar® Control with pressure sensor (7301556) or Aquastar® Easy 2 with pressure sensor (7301557)
• Ocean® pool pump O75, 0.55 kW
• iQntrol dosing system DOS-NET (730556) or iQntrol salt electrolysis system SALT-COMPLETE (7301557)
• Pre-assembled Praher Plastics PVC fittings, pipes, fittings (d63)
• BASE platform: made of polypropylene, for save transport and easy placement
• Nature Works glass filter media

Technical data

• For pool sizes up to 60 m³ (AT, DE) resp. 50 m³ (CH)
• Available with chlorine or salt system
• Dimensions: 1700 x 800 x 1600 mm

Versions

Advantages of iQmfort and automation

Sustainable pool management

• Stable water quality thanks to automatic measurement of real-time data
• Optimisation of water consumption by reducing backwashing processes
• Optimisation of the backwash processes:
  • According to requirements and situation, individual flow rates and filter times.
  • The pump is automatically switched off to depressurise the valve disc.
• Overflow protection through automatic backwash triggers
• Automatic level control with integration of a float switch (skimmer pool). If the water level in the pool is too low, water is automatically added.
• Maximum user-friendliness thanks to centralised control of all pool technology components

Safety

• LED indicator lights for error messages
• Manual override
• Actuation for manual filter backwash
• Integrated pressure sensor to trigger backwash if system pressure is too high
• Additional "Closed" and "Winter" positions
• Error output for visualisation (e.g. in the technical room or connection to Smart Home system)

One Pool. One System. One Controller.
