Ocean inlet nozzle PT De Luxe DIN, short version, ABS, for self-tapping PT screws, DIN EN16582 multiflow ball, installation kit for liner and steel wall pools, white

Ocean inlet nozzle PT De Luxe DIN, short version

• For PT
  self-tapping screws
• DIN EN 16582
  multiflow ball
• 13/17/21 mm
  opening diameter (break-out)
• Freely
  adjustable ball

Description

The Ocean inlet nozzle PT De Luxe DIN is a solution compliant with DIN EN 16582 for precise and efficient water flow in liner and steel wall pools. Designed for professional use, it combines maximum hydraulic flexibility with ease of installation and maintenance.

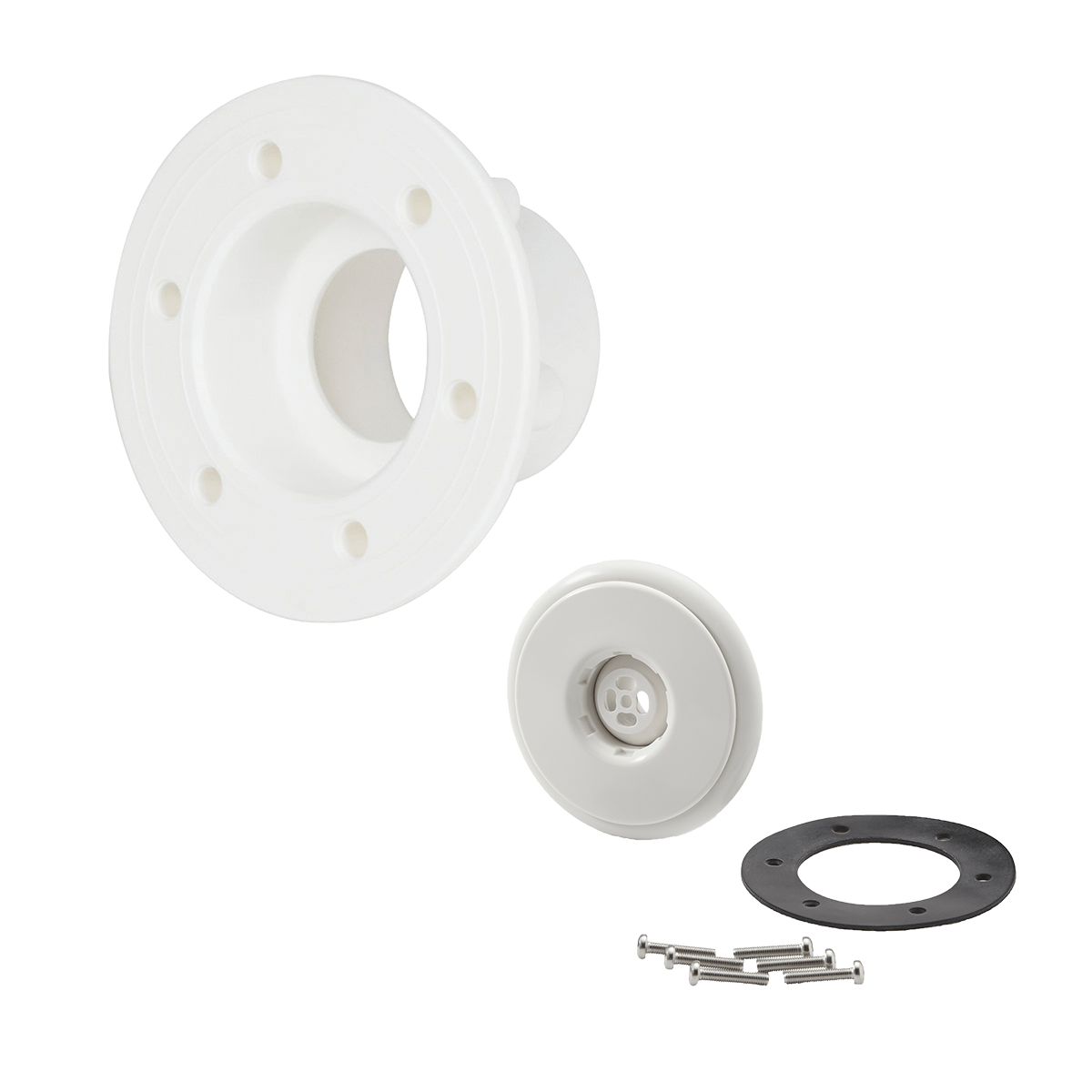

Set consisting of an inlet nozzle, an PT adaptor with a d50/63 solvent connection, 2 gaskets, and a PT screw set.

Suitable for liner and steel wall pools.

Product details

Features

• Perfectly balanced water circulation: Thanks to the universal ball with 3 opening sizes (13 / 17 / 21 mm), you can precisely adjust the flow rate to any installation situation - for optimal circulation throughout the entire pool.
• Precise flow control: The fully adjustable ball allows for individual adjustment of the outlet direction and angle. This ensures even water flow and supports efficient dirt removal to the skimmer.
• Standard-compliant safety: The design in accordance with DIN EN 16582 ensures the highest safety standards in pool operation - particularly with regard to injury and entrapment protection while maintaining a defined flow rate.
• Quick, secure installation: The PT screw connection ensures easy installation and permanently tight connections.
• Service-friendly design: The ball and face plate can be loosened, cleaned, or replaced in just a few simple steps. This reduces maintenance time and facilitates subsequent hydraulic adjustments during operation.

Installation diagram for liner and steel wall pools

Installation diagram for the Ocean inlet nozzle PT De Luxe, short version in a liner/steel wall pool

1. Face plate
2. Ocean multiflow ball
3. Torx-screws PT (6 pieces)
4. Nozzle
5. Gaskets (2 pieces)
6. Adaptor PT

Dimensions

Dimensions in mm

Versions

Note

For applications requiring frequent maintenance, we recommend using the Ocean inlet nozzle M5 De Luxe, short version. Thanks to durable stainless steel threaded inserts, the screw connections can be loosened and retightened multiple times without causing wear or loss of function.
