Ocean inlet nozzle De Luxe DIN, ABS, DIN EN16582 multiflow ball, installation kit for poly, vinylester, PP pools, black

Ocean inlet nozzle De Luxe DIN

• For prefabricated pools
  (poly, vinylester, PP pools)
• DIN EN 16582
  multiflow ball
• 13/17/21 mm
  opening diameter (break-out)
• Freely
  adjustable ball

Description

The Ocean inlet nozzle De Luxe DIN is a solution compliant with DIN EN 16582 for precise and efficient water flow in prefabricated pools. Designed for professional use, it combines maximum hydraulic flexibility with ease of installation and maintenance.

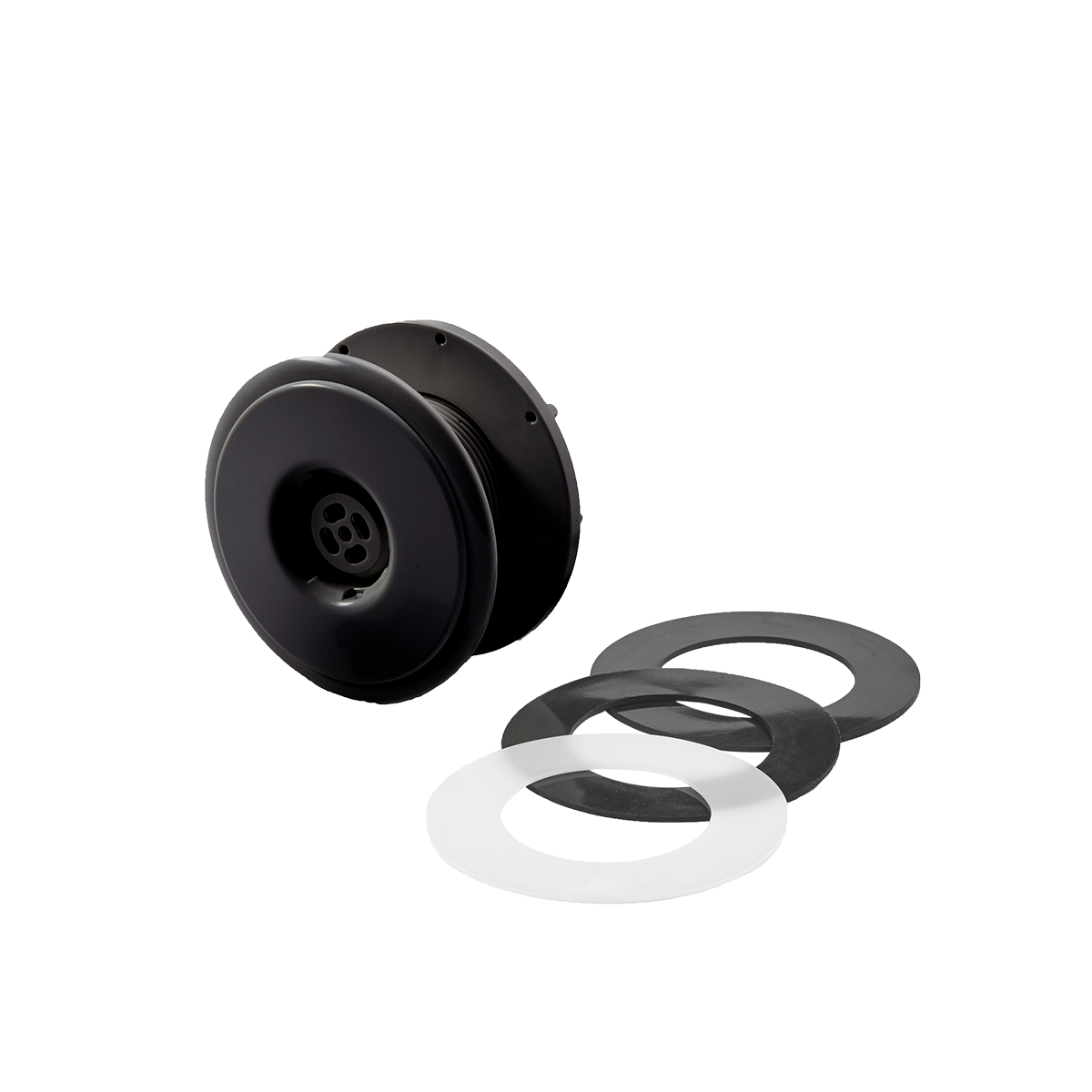

Set consisting of an inlet nozzle and a flange set (2 gaskets, a POM washer, and a clamping nut).

Suitable for prefabricated pools (poly, vinylester, PP pools).

Product details

Features

• Perfectly balanced water circulation: Thanks to the universal ball with 3 opening sizes (13 / 17 / 21 mm), you can precisely adjust the flow rate to any installation situation - for optimal circulation throughout the entire pool.
• Precise flow control: The fully adjustable ball allows for individual adjustment of the outlet direction and angle. This ensures even water flow and supports efficient dirt removal to the skimmer.
• Standard-compliant safety: The design in accordance with DIN EN 16582 ensures the highest safety standards in pool operation - particularly with regard to injury and entrapment protection while maintaining a defined flow rate.
• Quick, secure installation: The flange connection ensures easy installation and permanently tight connections.
• Service-friendly design: The ball and face plate can be loosened, cleaned, or replaced in just a few simple steps. This reduces maintenance time and facilitates subsequent hydraulic adjustments during operation.

Installation diagram for prefabricated pools

Installation diagram for the Ocean inlet nozzle De Luxe in a prefabricated pool

1. Face plate
2. Ocean multiflow ball
3. Nozzle
4. Gasket (2 pieces)
5. Washer
6. Clamping nut

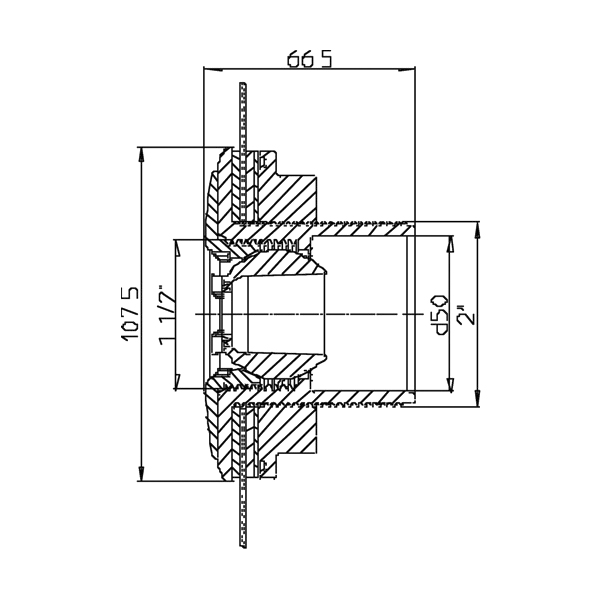

Dimensions

Dimensions in mm
