Compact filter system Vienna 2, side mount

Please select a variant to see the product information.

Description

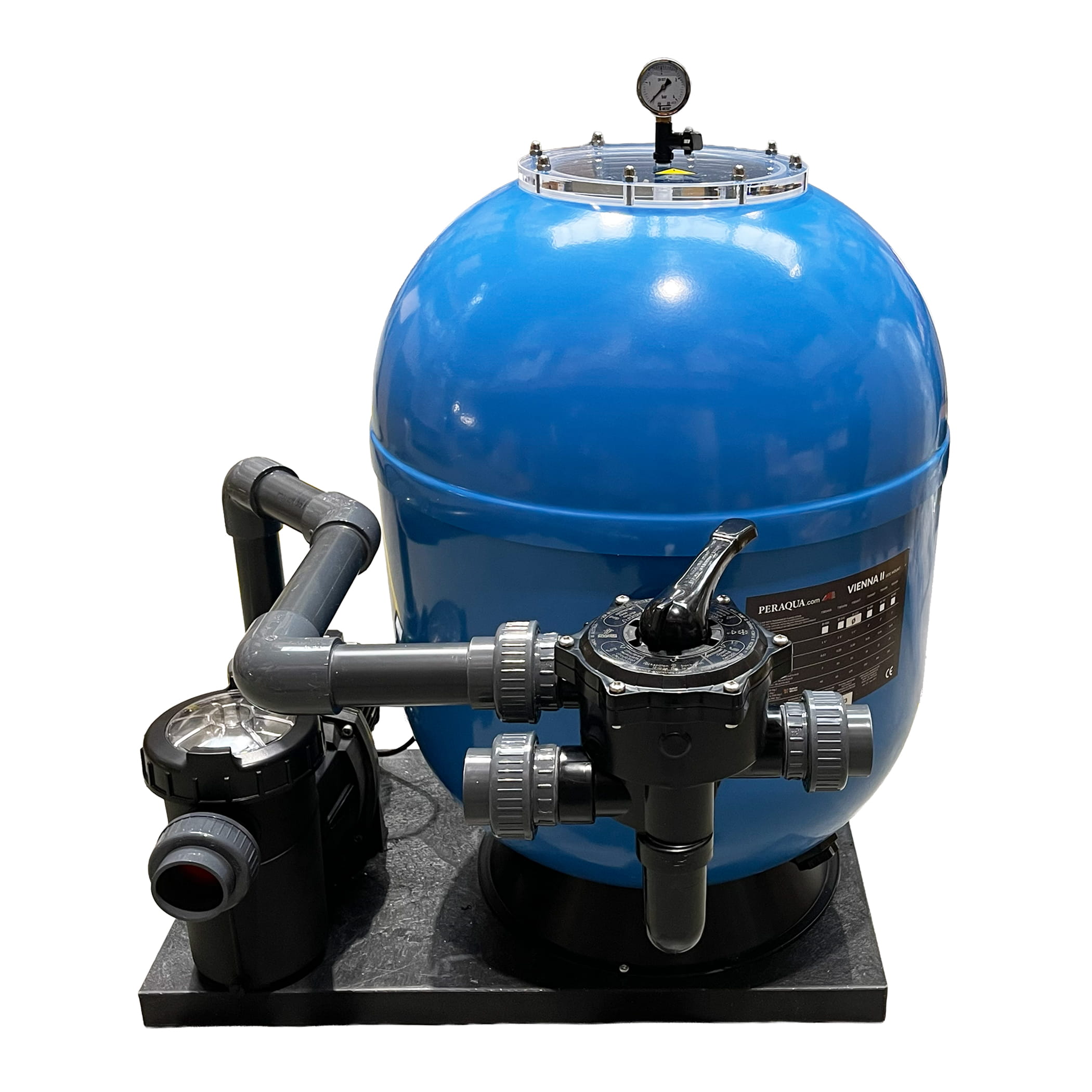

Compact filter system Vienna 2, Side Mount

Incl. filter pump
Ocean® Series O
6-way valve
included
Piping set
glued
Pre-assembled
on filter pallet

Description

Compact filter system consisting of polyester filter, self-priming filter pump and 6-way backwash valve. Completely piped and mounted on a noise-reducing PE filter pallet. Suitable for private pools. Neutral individual packaging.

Product details

Polyester filter Vienna 2
Laminated side mount polyester filter with reinforced fiberglass filter container. Large, transparent flange lid. Suitable for private pools. With vent valve and pressure gauge. 2-year warranty on filter housing tightness.
More infos

product image Ocean filter pump series O

Ocean® filter pump series O
Self-priming electric pump with built-in, large pre-filter.
d510: Ocean® filter pump series O50, 0.37 kW
d620: Ocean® filter pump series O75, 0.55 kW
Ocean® filter pump series O50 | Ocean® filter pump series O75

product image original Praher 6-way valve

Original Praher 6-way backwash valve
ABS housing, 1 ½", max. operating pressure: 3.5 bar, 6 positions + additional winter position, with glued piping set.
More infos

Dimensions

Swipe/scroll to see all columns

	d510	d620
Connection	1 ½"	1 ½"
D outside (mm)	510	620
Height A (mm)	790	860
B (mm)	510	620
C (mm)	350	400
D (mm)	475	525
Filtration area (m²)	0.20	0.30
Flow rate (m³/h)*	10	15
Filter pump	Series O50 (0.37 kW)	Series O75 (0.55 kW)
6-way valve	1 ½"	1 ½"
Art.Nr.	7302051	7302052

* (v = 50 m/h)

Dimensions Vienna 2

Filling quantities

Swipe/scroll to see all columns

	d510	d620
Filter bed height (mm)	475	525
Nature Works* (kg)	100	140
Filter sand** (kg)	120	160

* Filter glass, granulate size 0.6 - 1.2 mm | ** granulate size 0.4 - 0.8 mm

Scope of delivery

Polyester filter Vienna 2
Ocean® filter pump Series O, 0.37 kW resp. 0.55 kW
Original Praher 6-way backwash valve, 1 ½", black
Valve piping set, glued
Ocean® screw connections, 3 pieces
Pre-assembled on PE filter pallet

FULLY AUTOMATIC FILTER CONTROL WITH AQUASTAR®

Manual pool filters of all common filter brands can be retrofitted with automation using our Aquastar® models and a suitable valve and piping set.

For filters including an original PraherPlastics 6-way valve, the installation of an Aquastar® drive is possible on request.
