TECHNICAL DATA
• Operation pressure: PN 10
• Body made of: PP-GF
• Direct installation of the actuator without any additional adapter or screws
• Mechanical limit stops
• Manual override
• Position indication
• Torque and force limiters
• Only sealing flange and disc in contact with medium
• fix point mounting
ELECTRIC ACTUATOR (ER)
• Plastic-aluminium body
• Power input up to 85W
• 4 end switch adjustable
• Swing able 90° (180°)
• On-time 50%
• Protection code IP67
• Ambient temperature -20 °C +70 °C
• ISO connection F07 – F10 octagonal screw 22 mm
product

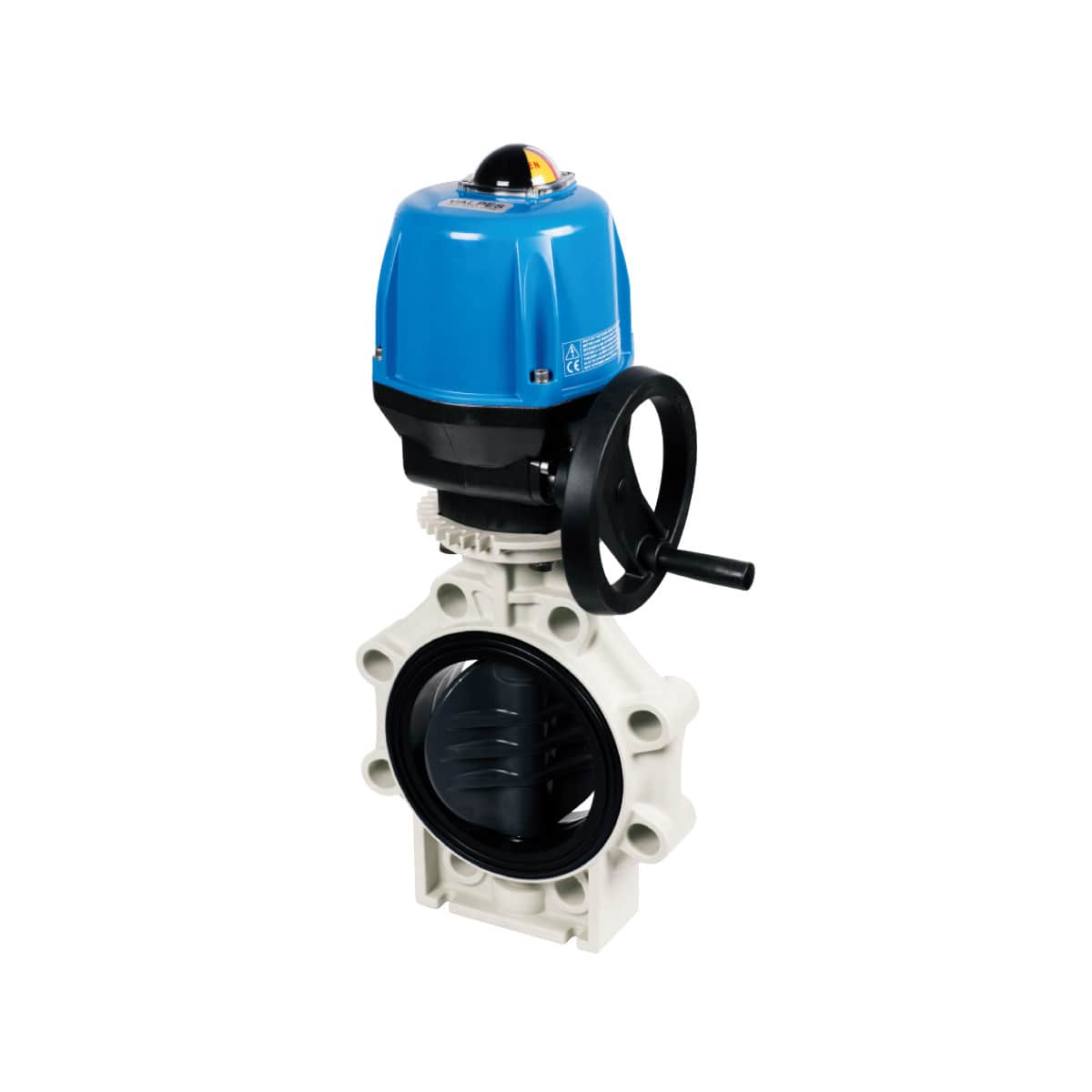

Butterfly Valve
serie
K4
nominal diameter
DN100
material
PVC
color
grey
pipe-connection-type
Flange-connection
dimension
110-4"
Standard
DIN-ANSI-JIS-BS
pressure
PN10
material O-ring
EPDM
actuators_controll
EO
actuators type
ER60
additional characteristic
90-240VAC
