TECHNICAL DATA
• Operation pressure: PN10
• Body made of PP-GF
• Direct installation of the actuator without any additional adapter or screws
• Mechanical limit stops
• Manual override
• Postion indivation
• Torque and force limiters
• Only sealing flange and disc in contact with medium
• fix point mounting

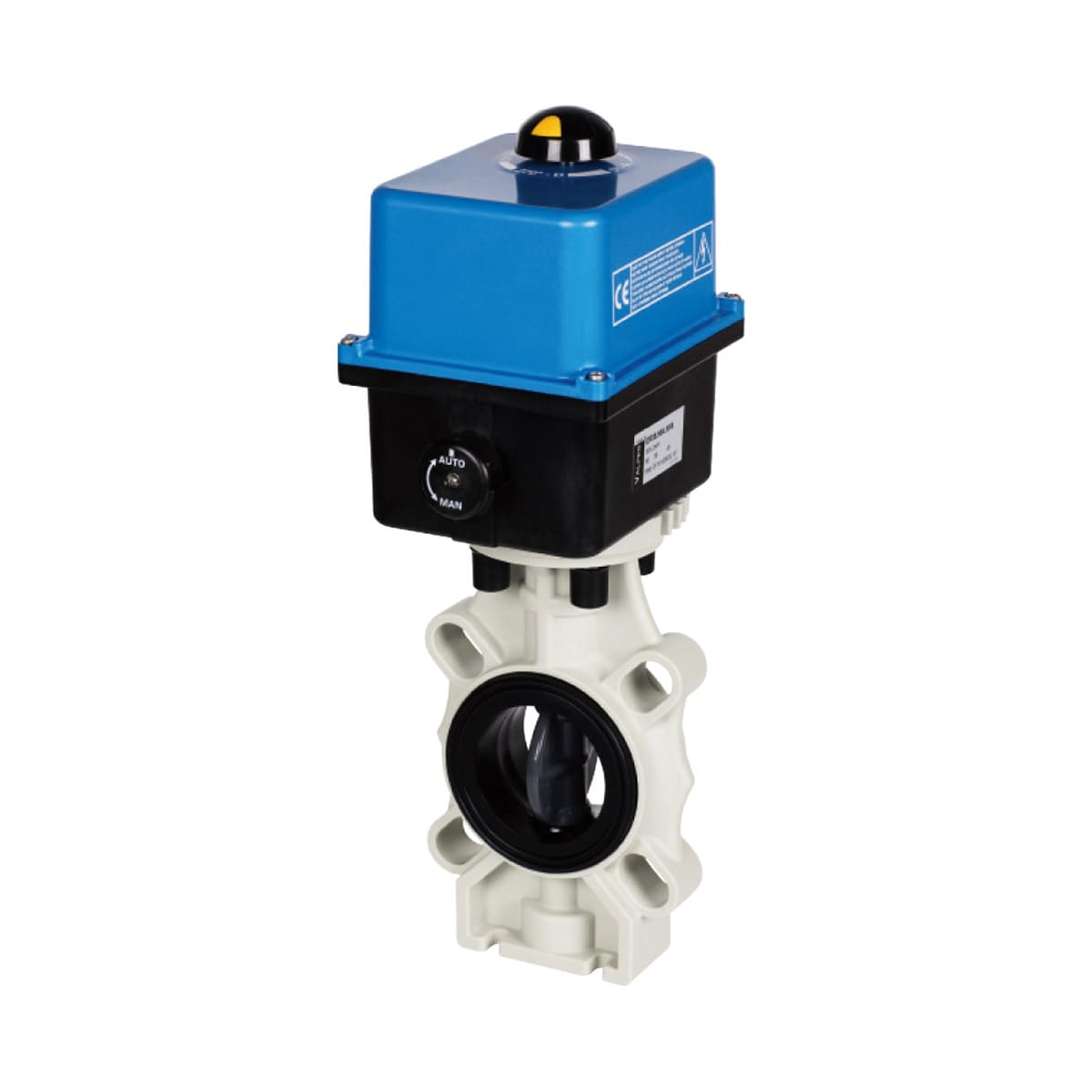

ELECTRIC ACTUATOR (ER)
• Plastic body
• Power input up to 45W
• 4 end switch adjustable
• swing able 90° (180°)
• On-time 30%
• Protection code IP65
• Ambient temperature -10°C +55°C
• ISO connection F05 - F07 octagonal screw 22 mm
