Description

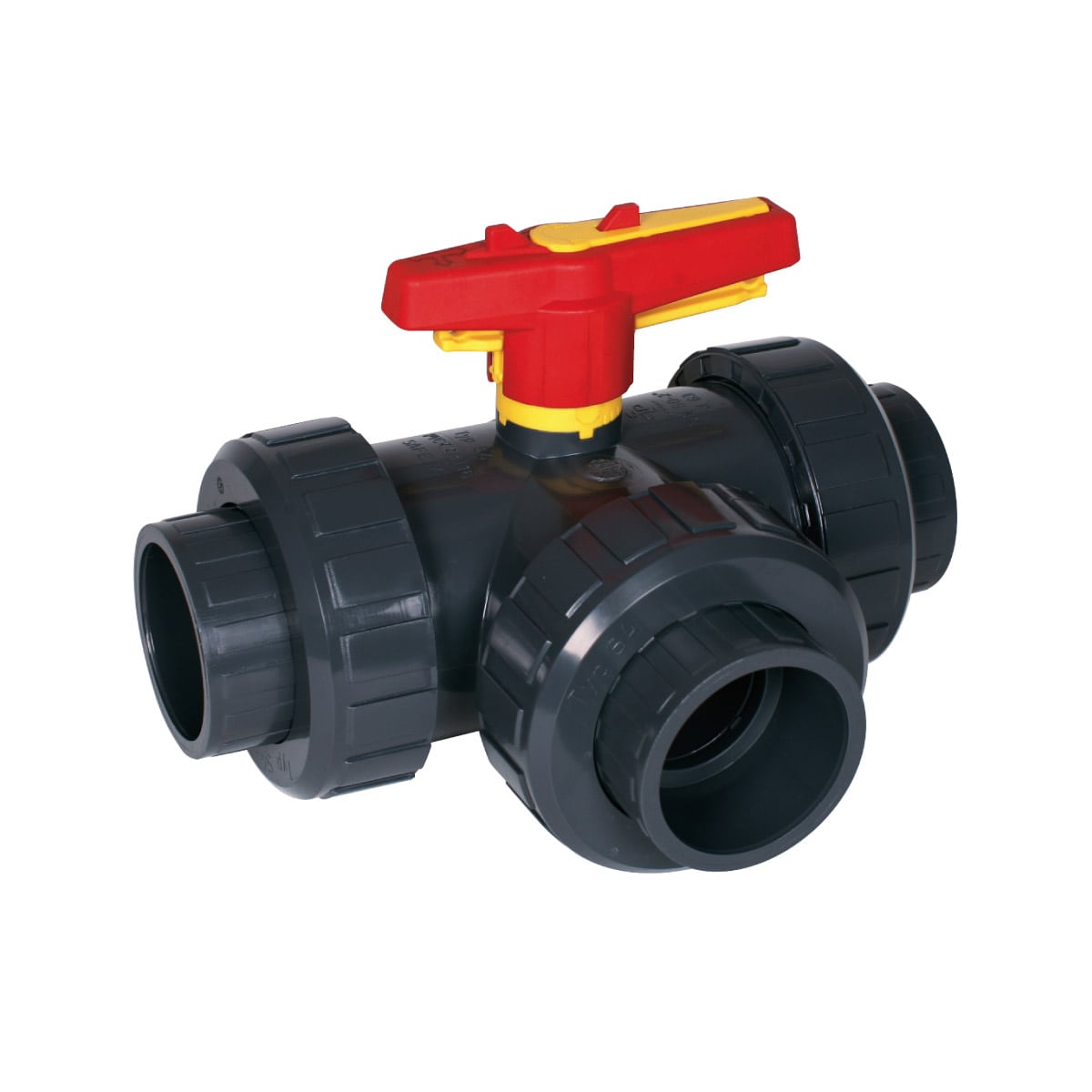

The S4 Series 3-way ball valve in the L-ball design was developed for applications in piping systems where media flows need to be diverted or distributed.
The design allows for bidirectional flow and features a flow cross-section corresponding to the nominal diameter. The ball valve can be removed radially and can be expanded with suitable valve mounts for automation solutions.
The product features an S4 Series handle system, a floating ball, and four PTFE ball seat rings.
Product details
Technical data
- Series: S4
- Type: 3W
- Design: L-ball
- Material: PVC
- Connection: PVCu adhesive socket
- Pressure rating: PN16
- Seal material: FPM
- Seat seal: PTFE
- Packaging: Individually packaged
Features
- Radially removable design
- Flow direction-independent
- Flow cross-section corresponding to the nominal diameter
- Floating ball
- Four PTFE ball seat rings
- Prepared for automation using suitable valve mounts
- Complies with the specified EC-VCM safety standards
