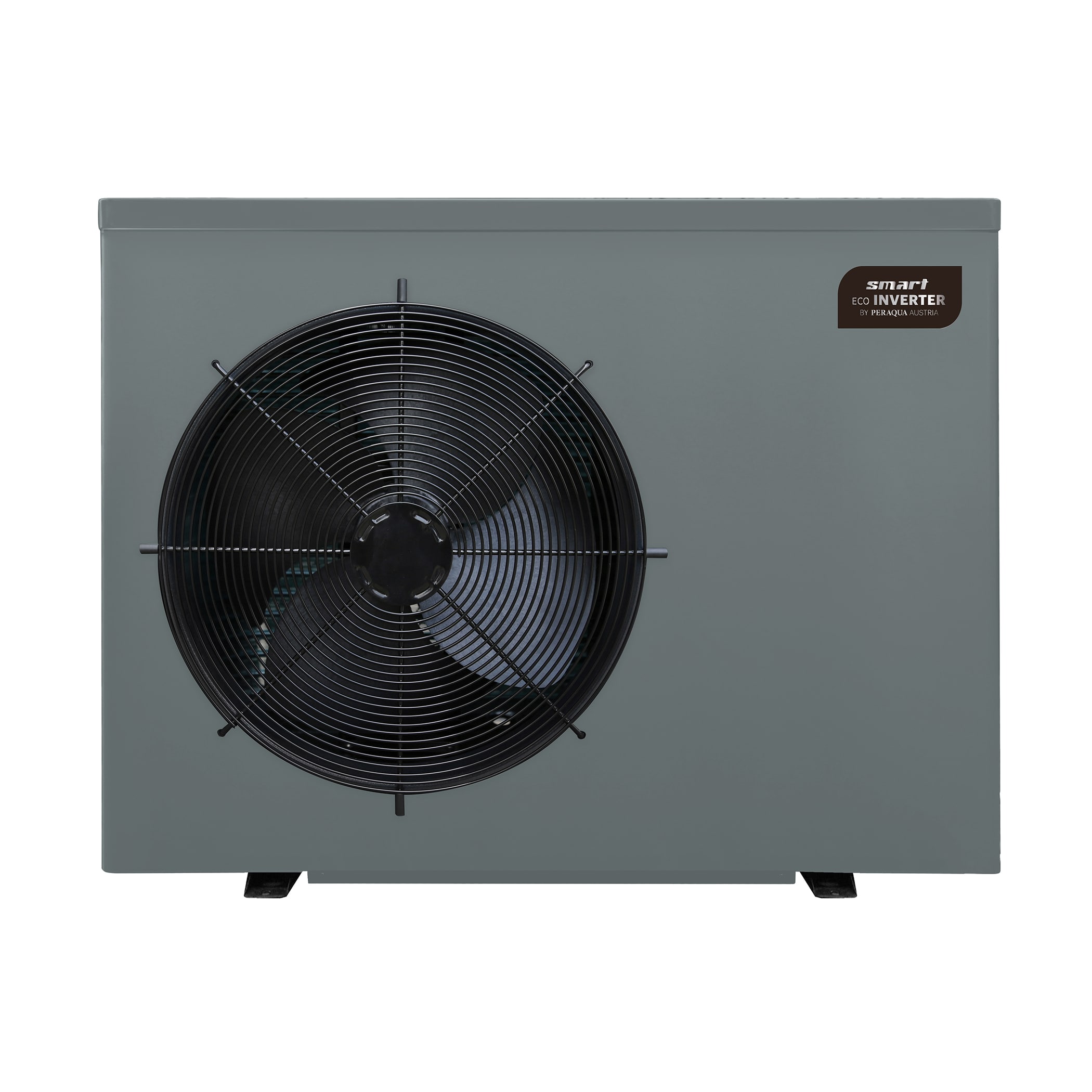

Smart inverter heat pump Eco
- 3-stage
speed adjusts itself
- Titanium
heat exchanger
- Metal housing
powder-coated
- R32
refrigerant
Description
Smart inverter Eco heat pumps are equipped with compressors that operate at three speeds. Unlike traditional heat pumps, which operate at a fixed frequency, Eco heat pumps can increase or reduce their speed depending on the energy requirement and ambient conditions. In this way, higher efficiency and a lower noise level can be achieved.
The pool water can be kept at a pleasant temperature using the heating and cooling function.
WLAN connection and app control can be retrofitted.
3-year warranty on the entire appliance, plus extended warranty for heat exchangers (5 years).
Product details
Performance conditions: air 26°C, water 26°C, humidity 80%
Swipe/scroll to see all columns
| |
7.0 kW |
9.0 kW |
12.5 kW |
16.0 kW |
20.0 kW |
|---|
| Heating capacity (kW) | 7.0 | 9.0 | 12.5 | 16.0 | 20.0 |
| C.O.P | 10.3 - 6.6 | 10.6 - 6.8 | 11.6 - 7.0 | 11.2 - 7.1 | 11.8 - 6.5 |
| C.O.P at 50% speed | 9.3 | 9.6 | 10.1 | 9.7 | 10.2 |
Performance conditions: air 15°C, water 26°C, humidity 70%
| |
7.0 kW |
9.0 kW |
12.5 kW |
16.0 kW |
20.0 kW |
|---|
| Heating capacity | 5.0 | 6.3 | 8.5 | 11.0 | 14.0 |
| C.O.P | 6.0 - 4.8 | 6.1 - 4.5 | 6.3 - 4.8 | 6.4 - 4.7 | 6.5 - 4.6 |
| C.O.P at 50% speed | 5.8 | 5.7 | 6.1 | 5.9 | 6.1 |
Performance conditions: air 35°C, water 28°C, humidity 80%
| |
7.0 kW |
9.0 kW |
12.5 kW |
16.0 kW |
20.0 kW |
|---|
| Cooling capacity (kW) | 2.5 | 3.1 | 4.6 | 5.6 | 7.8 |
Technical data
| |
7.0 kW |
9.0 kW |
12.5 kW |
16.0 kW |
20.0 kW |
|---|
| Advised pool volume (m³) | 15 - 30 | 20 - 35 | 30 - 50 | 35 - 65 | 45 - 80 |
| Working air temperature (°C) | 0 - 43* | 0 - 43* | 0 - 43* | 0 - 43* | 0 - 43* |
| Sound pressure 1 m dB(A) | 38.8 - 50.2 | 40.6 - 52.5 | 42.9 - 53.0 | 45.2 - 56.3 | 45.3 - 57.1 |
| Sound pressure 10 m dB(A) | 18.8 - 30.2 | 20.6 - 32.5 | 22.9 - 33.0 | 25.2 - 36.3 | 25.3 - 37.1 |
| Sound pressure 50 % capacity 1 m dB(A) | 42.8 | 45.8 | 48.5 | 48.7 | 49.6 |
| Compressor | GMCC DC Inverter | GMCC DC Inverter | GREE DC Inverter | GREE DC Inverter | GREE DC Inverter |
| Heat exchanger | Titanium | Titanium | Titanium | Titanium | Titanium |
| Housing | Metal | Metal | Metal | Metal | Metal |
| Phases | 1 | 1 | 1 | 1 | 1 |
| Power supply 50 Hz (V) | 230 | 230 | 230 | 230 | 230 |
| Rated input power at air 15 °C (kW) | 0.29 - 1.04 | 0.36 - 1.40 | 0.47 - 1.78 | 0.59 - 2.34 | 0.75 - 3.04 |
| Rated input current at air 15 °C (A) | 1.26 - 4.52 | 1.57 - 6.09 | 2.02 - 7.74 | 2.52 - 10.17 | 3.26 - 13.21 |
| Advised water flux (m³/h) | 2 - 4 | 3 - 4 | 4 - 6 | 6.5 - 8.5 | 8 - 10 |
| Water pipe in-out spec (mm) | 50 | 50 | 50 | 50 | 50 |
| Net dimension L x W x H (mm) | 744 x 359 x 648 | 864 x 359 x 648 | 864 x 359 x 648 | 954 x 359 x 648 | 954 x 359 x 748 |
| Net weight (kg) | 42 | 46 | 49 | 60 | 68 |
| Art.-Nr. |
7300704 |
7300706 |
7300707 |
7300708 |
7300709 |
* Efficient and optimum operation is only recommended above freezing point (0 C°). The specified values apply under ideal conditions: Pool is covered with an isothermal cover, filter system runs at least 15 hours a day, minor deviations in the technical specifications are possible depending on the system and subject to technical changes.
Features
- Heating and cooling
- Very quiet
- Fan motor with variable speed
- Soft start function
- Powder-coated metal housing
- Blue-grey, RAL 7031
- Refrigerant: R32
- 3-stage compressor
- LED display
- Smart mode for intelligent operation
Silence mode to reduce operating noise
- With the power-off memory function, the appliance settings are retained even after a power failure
- The Titanium heat exchanger is suitable for use in swimming pools with salt electrolysis systems
- Defrost function using efficient automatic hot gas defrosting
- Automatic flow detection thanks to integrated flow switch
- Pump can be controlled directly from the device
- Extensive diagnostic functions and parameter menu
- WLAN connection and app control can be retrofitted
- 3-year warranty on the entire appliance, extended warranty for heat exchanger (5 years)
Product notes
- Winter cover, vibration absorber and condensation drain set are already included in the scope of delivery.
- Models art. no. 7300704 and 7300706 with integrated plug and 2.5 m cable.
WLAN connection retrofittable
- WiFi module for Smart inverter heat pump Eco
