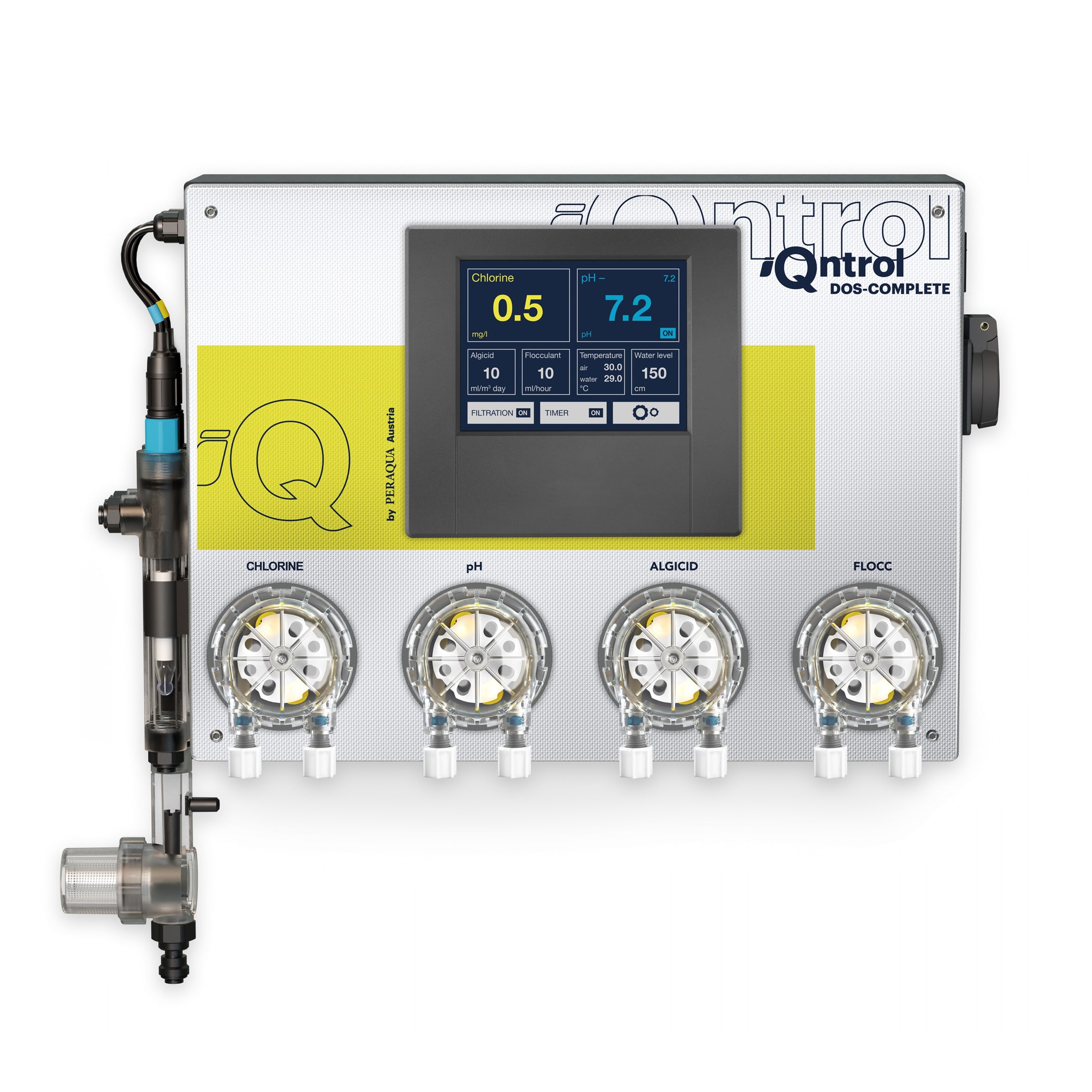

iQntrol dosing system DOS-COMPLETE Redox/CLF

iQntrol dosing system DOS-COMPLETE Redox/CLF

• pool management
• touch screen
• app-capable
• plug-in ready

Description

iQntrol DOS-COMPLETE is a high-precision disinfection system with intelligent pool management functions. Thanks to the four dosing pumps, disinfection, pH liquid, algaecide and flocculant can be dosed with one device. The touchscreen display shows all the information about the water quality and makes it easy to set up the entire system. With the internet connection, you can monitor the parameters of your pool via a mobile and/or web application.

Water purification

The DOS-COMPLETE dosing system ensures crystal-clear water in your pool using the smallest possible quantities of chemical additives. The free chlorine or redox value is measured using a membrane probe or redox probe. It monitors the set pH value of the pool water and automatically adjusts the dosing to the changing ambient conditions.

In addition, the dosing system doses the set amount of algaecide daily in relation to the swimming pool volume. The additional use of algaecide reduces the chlorine requirement. The slow, continuous dosing of flocculant binds even the smallest impurities and improves filter efficiency.

Pool management functions

• Filter times (two time intervals per day)
• Level control: The water level can be monitored with the optional pressure sensor or float switch; the water level can be monitored in up to four levels for overflow basins
• Backwash control (backwash frequency): in combination with the Aquastar Easy 2 automatic backwash valve (backwash duration)
• Pump control: connection for ON/OFF pump via integrated socket, for speed-controlled pump via 4 potential-free contacts, when changing the valve position (automatic 6-way valve) the pump is switched off, when backwashing the speed is increased for more efficient backwashing
• Heating control: intelligent control of the set water temperature for electric heaters, heat exchangers, heat pumps (supports temperature-dependent heat pump release)
• Economy mode possible for overflow basins

Product details

• For pools up to 250 m³
• Measuring parameters: Redox value/free chlorine, pH value, water temperature, flow rate
• Dosing: pH minus, algaecide, flocculant
• Dosing pump capacity: 60 ml/min, max. 1 bar
• App-capable, RS485+LAN interface, read & alarm functions
• Touch screen
• Plug-in ready
• Max. operating pressure: 1.5 bar
• Connection: external thread 1/4"
• Power supply: 230 V AC 50 - 60 Hz
• Incl. flow sensor with fine filter
• Filter pump connection: max. 230 V, potential-free relay
• Max. power for directly connected filter pumps: 1.4kW | 230V
• Frost protection: Winterisation without draining the water, heating is activated from a certain outside temperature and the pool pump is active 24 hours a day
• Protection class IP30

Scope of delivery

• pH probe
• Redox probe or CLF membrane probe
• Flow sensor with fine filter
• Integrated dosing pumps 4 pcs.
• Sample water tap 2 pcs.
• Injection valve 4 pcs.
• Suction weight 4 pcs.
• Measuring line 1/4’ transparent, pipe weight 2 pcs.
• Probe spanner
• Temperature sensor for immersion sleeve
