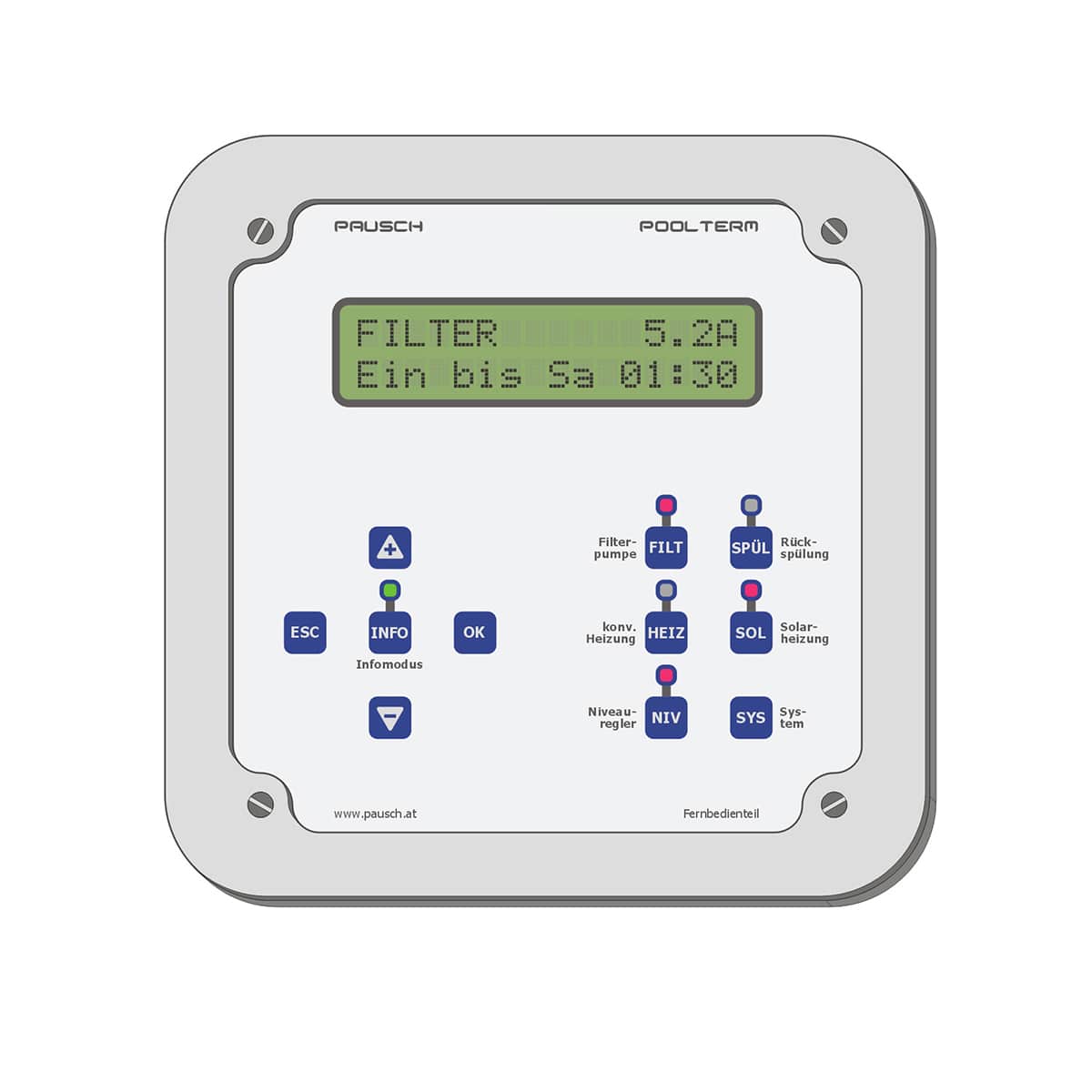

Under-wall remote control unit for iQntrol-P4 and iQntrol-P5
Description
With this under-wall remote control unit, the iQntrol-P4 and iQntrol-P5 control units can be conveniently operated remotely - even if the pool control unit is mounted inaccessibly in the plant room.
Very simple installation: A small electronics box is fitted to the swimming pool control unit, which is connected to the remote maintenance socket on the control unit. The remote control unit is then connected to the electronics box via a Cat5 network cable.
The remote control unit is supplied with electricity via the network cable with safety extra-low voltage. This means that no additional cables are required.
All functions of the control unit can be used via the remote control unit. The control unit can still be operated locally.
Product details
- Flush-mounted housing with anodized aluminium frame.
- Large, backlit plain text display with high contrast.
- End user mode, in which only the most important settings are accessible. The rest is protected by a password.
- Acoustic signals make operation even more intuitive.
- The INFO button tells you what is running and why.
- Display of all temperatures, switching statuses, pump current, times, etc.
- Speed buttons for uncomplicated operation. Signal lamps for a good overview.
- Easy installation in any wall (brick, concrete, plasterboard). Installation opening: 165 x 165 mm, depth: 72 mm.
product
remote control
brand
Peraqua®
series
iQntrol-P4 + P5
