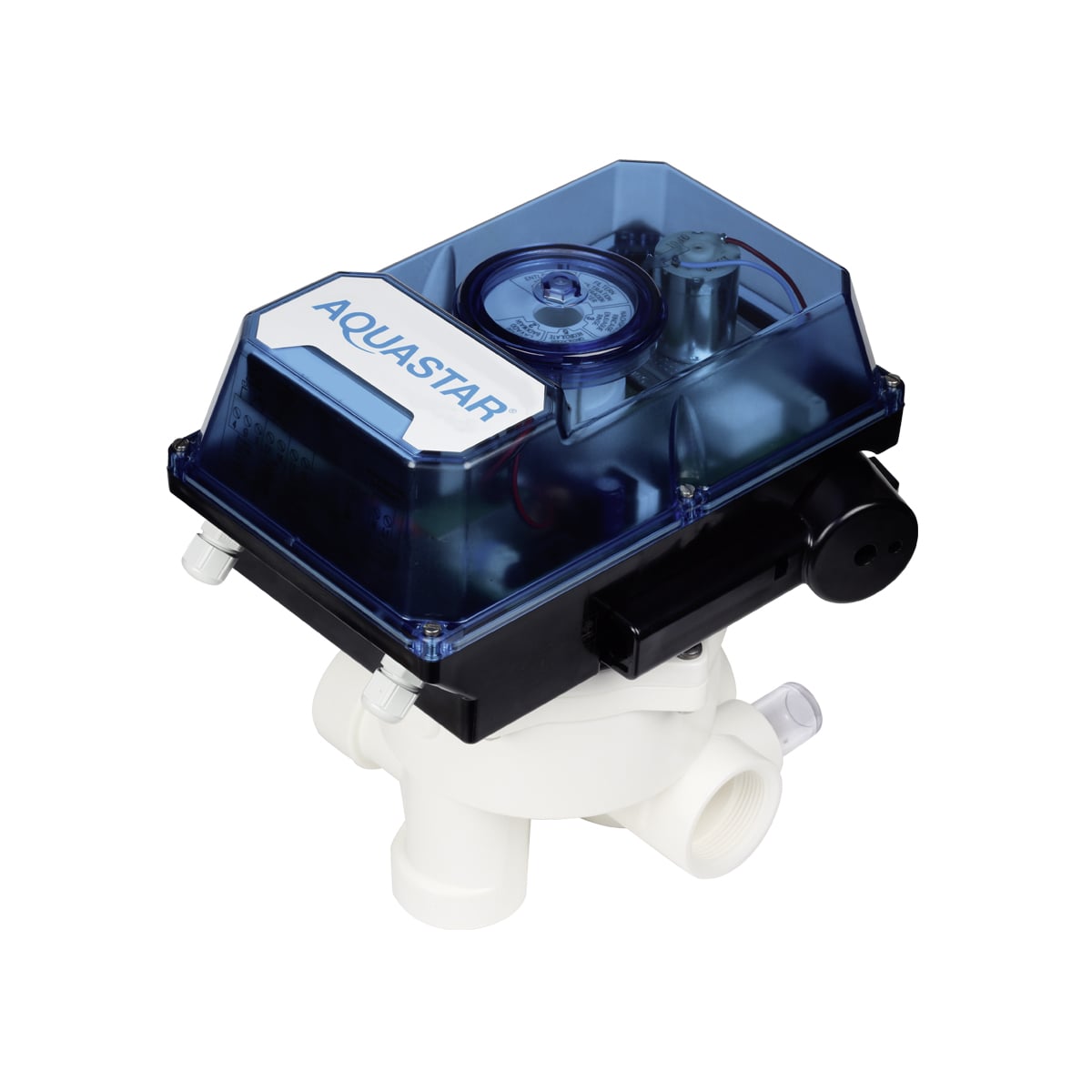

Backwash valve AQUASTAR® comfort 3001-230 with valve

Backwash valve AQUASTAR® comfort 3001-230 with valve

Description

A self-contained linear rotary actuator for a V-6 valve with integrated filter pump control and increased range of functions. With integrated digital timer.

Including backwash valve SM20 3 2" ABS white thread BSP, top+bottom adhesive d63 metric PN3.5 NBR tpe.

For fully automatic and cost-effective backwashing of filtration systems d400 - d1050.

Suitable for exclusive private and public swimming pools and aqua parks that do not have their own PLC control system.

Product details

• 5 positions can be controlled with your own PLC control (filter / backwash / rinse / waste / circulate)
• Optical position control on the actuator lid
• Manual override for all dimensions
• Potential connections for EO510 electric ball valve or additional pump (event: 2 backwash pumps)
• IP65 protection
• Valve and actuator housing UV-resistant
• Electronic actuator 12 – 34 V AC/DC, 100 – 240 V AC (50 – 60 Hz)
• Position "circulate" can be used in combination with salt water chlorination
• Potential free clamps, for control of Praher EO510 electric valves
• Direct pump connection
• Easy adaptation to all common filter brands with a 1½" and 2" Ocean side mount or top mount valve ABS 3.5 bar incl. Praher PVC & ABS pipings and unions for easy and quick installation
• Retrofitting onto all manual Praher Ocean V6 side or top mount valves with new sealing system possible (all common filter brands)
