Automatic pH control + dosing pump

Automatic pH-control + dosing pump

Description

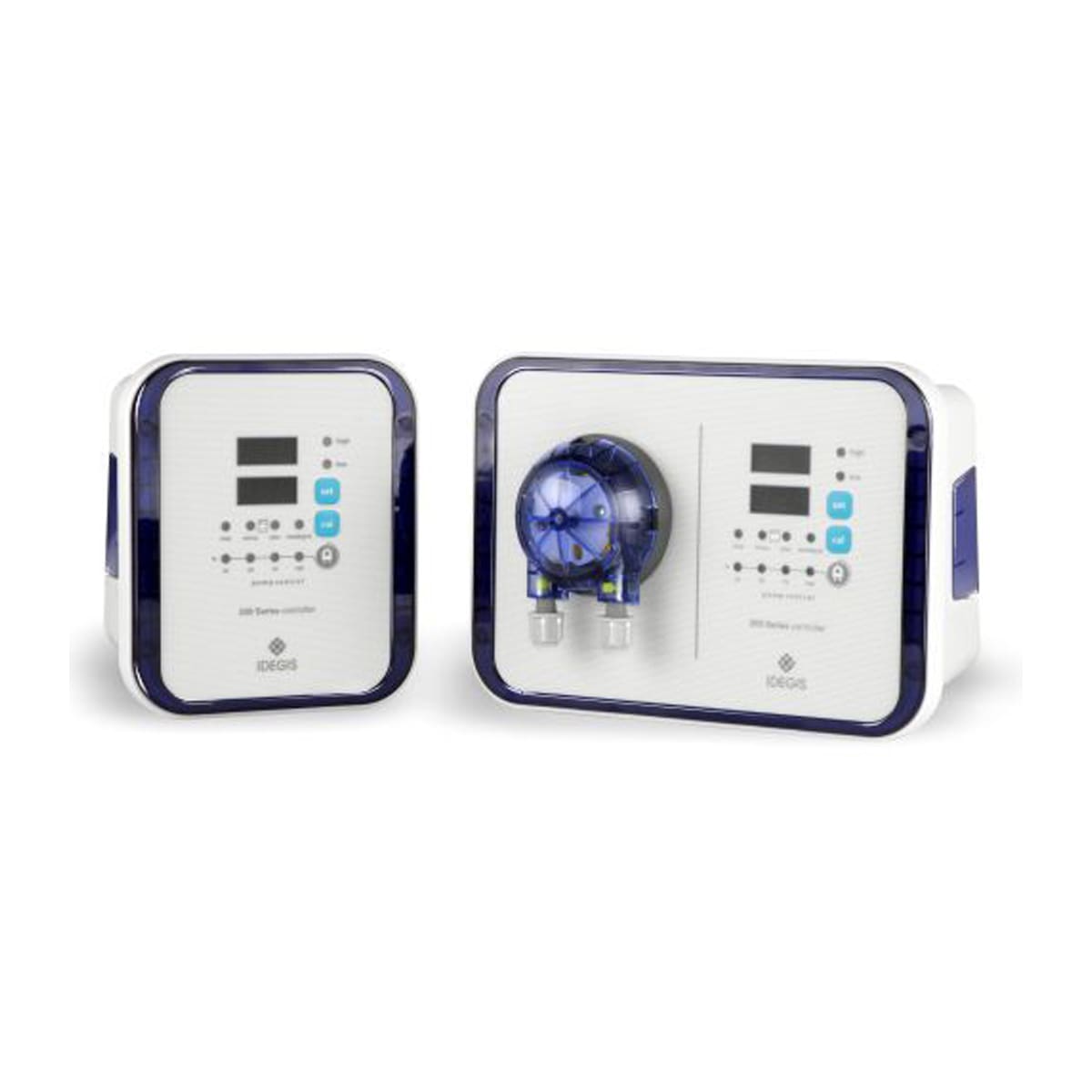

Automatic pH control with control panel and peristaltic dosing pump (1 l/h). Large displays for easy display and operation. MODBUS capable. Probe and calibration solutions included.

Suitable for private pools.

Product details

• "Intelligent Dosing" function: electronic control of the dosage
• "Pump Stop" safety system: Prevents idling damage to the pump, overdosing of the product, difficulties in regulating the pH value due to a high alkaline content in the water.
• Easy maintenance thanks to the “Pump Express” function
• 2 operating modes: Fast (one-point calibration), Standard (pH4/pH7 buffer)
• MODBUS capable

Technical data

Controller
Control outputs: 1 x 230 V (AC) (0.5 A max) / 1 x 15 V (DC) / 1 x potential-free output
Measuring scale: 0.00 - 9.99 pH value / 0 - 999 mV (redox potential)
Control range: 7.00 - 7.80 pH / 600 - 850 mV (redox potential)
Accuracy: 0.01 pH value / 1 mV (redox potential)

Probes
Epoxy body 12 x 150 mm, 0 - 80 °C, single sealed union Ag/AgCl, 2 m cable, BNC connector, gelified electrolyte, fixed probe protector

Integrated pump
Peristaltic pump, 1 l/h, maximum pressure 1.5 bar, suction valve, injection valve, suction tube PVC 4 x 6 mm length 2 m, delivery tube PE 4 x 6 mm length 2 m
