Description

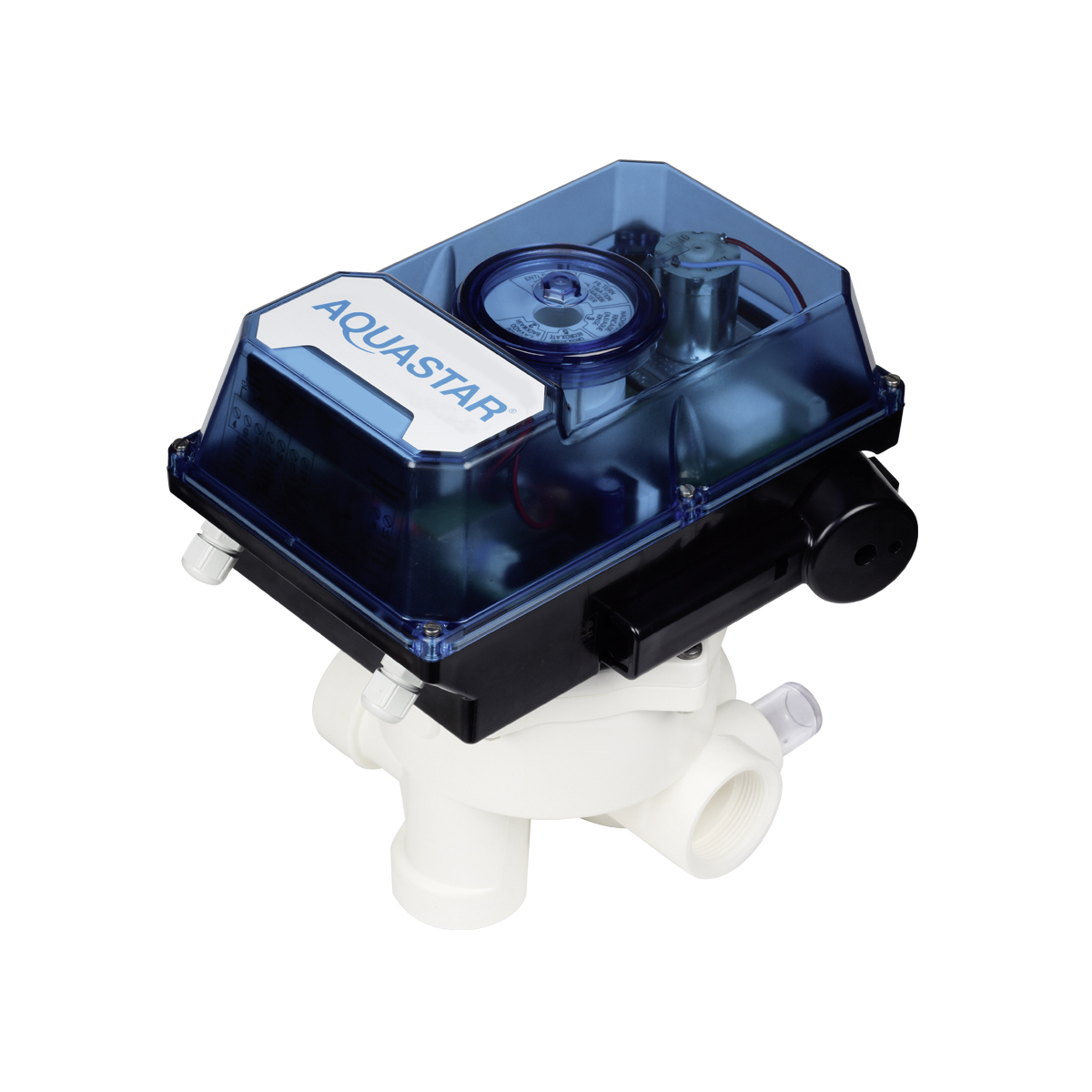

The AquaStar® mp6 plc was developed for the automated control of filtration systems in conjunction with PLCs.
It is available with ABS backwash valves rated up to 3.5 bar or ASA-GF versions rated up to 5 bar and is suitable for filtration systems ranging in size from d500 to d1050.
Product details
- Microcontroller-controlled linear-rotary actuator for PLC controls
- Control of valve positions via DC signals from the controller
- Integrated error and status messages
- Functions for detecting specific system states and malfunctions
- Relays with gold contacts for feedback of switching states
- Wide-range operating voltage (100–240 VAC, 50–60 Hz / 150–300 VDC or 24 V AC/DC)
- Available in 1½“, 2”, and 3" sizes
- IP65 protection rating
- UV-resistant valve and actuator unit
- Additional “Winter” position
- “Circulate” position for use with suitable saltwater chlorination systems
- Potential-free terminals for controlling Praher EO510 electric valves
- Direct pump connection
- Can be retrofitted to compatible Praher Ocean® V6 side-mount and top-mount valves with a new sealing system
- Visual position indicator on the actuator cover
- TGM test certificate
